Pie Chart Legend bug or my missing call?

[JNuzzi]

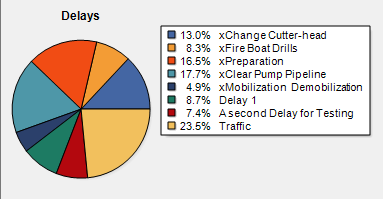

I am using a Pie Chart and when I send some data to it the first time, it is great. It looks like:


However, when I try to limit the data, the legend entries all stay. I call the Clear function on the series, then run the data again with fewer entries and get:


Thank you,

John

[Yeray]

Hello John,

I've seen the fix for #1210 in TeeChart v2025.44 breaks this.
We are revising it.

[JNuzzi]

Thanks Yerah.

I think I have identified another small bug. Using PrintPartialCanvas, the chart titles don't seem to adjust to the given rectangle:


I was going to go tinkering around in the code, but figured I would point it out anyway.

Thanks,

John

[JNuzzi]

Plus, what does PrintProportional do? It says it is on by default, but the charts seem to stretch if I don't set the right aspect ratio. The circular gauges ignore the Circled property.

Thanks again...

[JNuzzi]

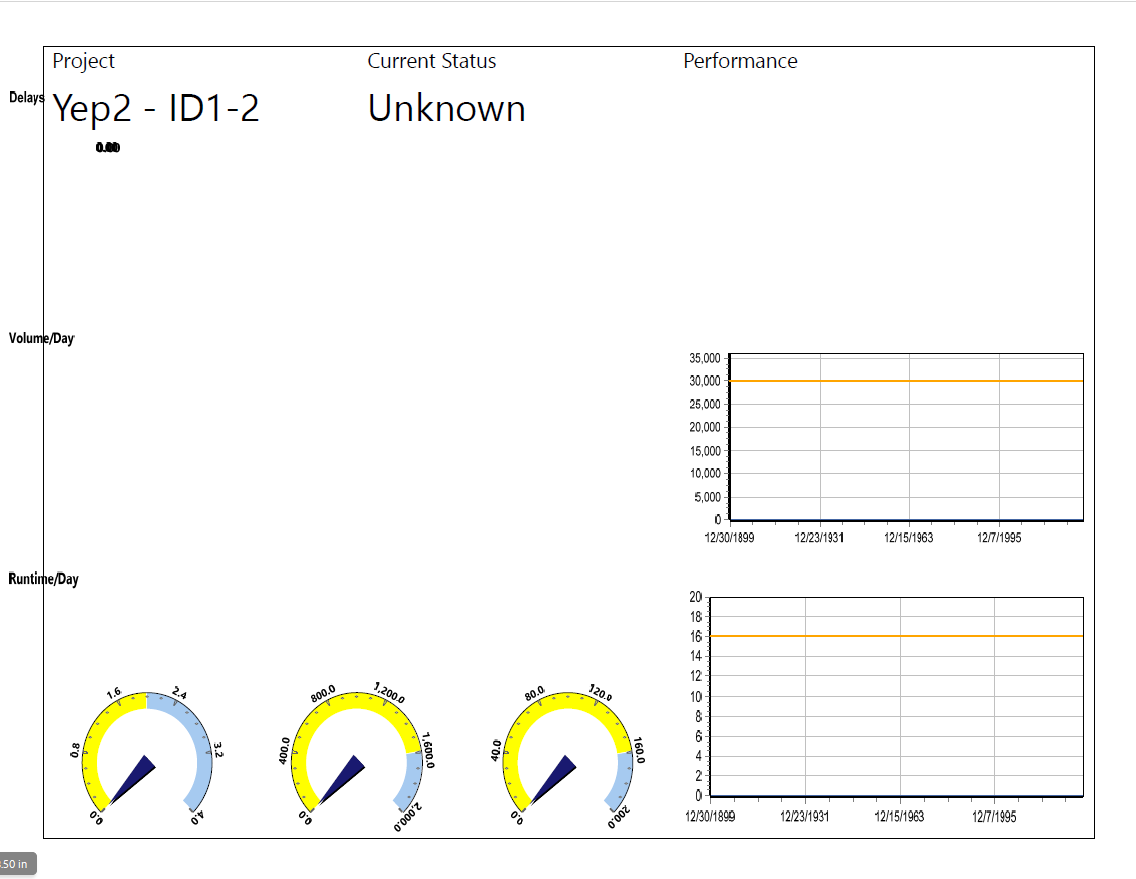

I figured maybe I could get around it by drawing to a Bitmap, then painting that to the printer. I got this:


John

[Yeray]

Hello John,

I've seen the fix for #1210 in TeeChart v2025.44 breaks this.
We are revising it.

I came up with this fix:

Code: Select all

--- a/Chart.pas
+++ b/Chart.pas
@@ -418,6 +418,7 @@ type

     ILegend : TCustomChartLegend;

+    procedure FontChanged(Sender: TObject);
     function GetFont:TTeeFont;
     procedure SetAlign(const Value:TCanvasTextAlign);
     procedure SetCustom(SetPos:Boolean);
@@ -5400,6 +5401,11 @@ begin
   result:=Assigned(FFont);
 end;

+procedure TLegendItem.FontChanged(Sender: TObject);
+begin
+  SetCustom(False);
+end;
+
 function TLegendItem.GetFont:TTeeFont;
 var Old : Boolean;
 begin
@@ -5417,6 +5423,7 @@ begin
      else
         FFont:=TTeeFont.Create(nil);

+  FFont.OnChange:=FontChanged;
   result:=FFont;
 end;

@@ -5516,11 +5523,6 @@ begin
     result:=TLegendItem.Create;
     result.ILegend:=ILegend;

-    if ILegend.InternalLegendStyle=lsAuto then
-       ILegend.CalcLegendStyle;
-
-    result.Text:=ILegend.FormattedLegend(Index);
-
     inherited Items[Index]:=result;
   end;
 end;

[JNuzzi]

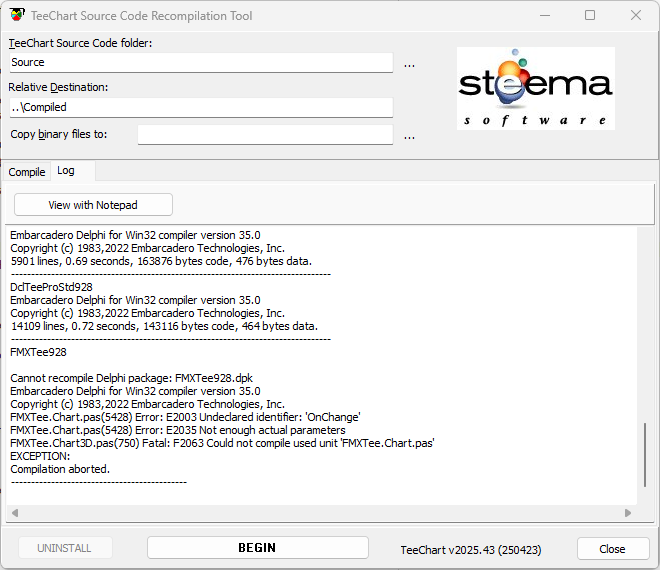

Hello, I am getting a compile error with those changes:


John

[Yeray]

Hello John,

Sorry. This is the fix for that error:

Code: Select all

--- a/Chart.pas
+++ b/Chart.pas
@@ -5523,6 +5523,9 @@ end;
 procedure TLegendItem.FontChanged(Sender: TObject);
 begin
   SetCustom(False);
+
+  if Assigned(ILegend) then
+    ILegend.CanvasChanged(Sender);
 end;

 function TLegendItem.GetFont:TTeeFont;
@@ -5542,7 +5545,12 @@ begin
      else
         FFont:=TTeeFont.Create(nil);

+  {$IFDEF FMX}
+  FFont.Brush.OnChanged:=FontChanged;
+  {$ELSE}
   FFont.OnChange:=FontChanged;
+  {$ENDIF}
+
   result:=FFont;
 end;

[JNuzzi]

Hello Yeray,

Thank you. It compiles now, and the legends work as intended.

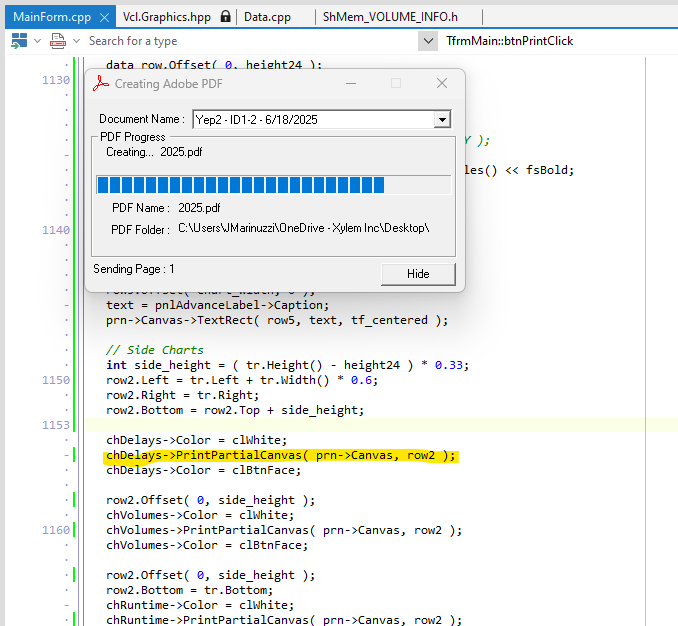

I have another new issue (besides titles and stretching during printing), now it just stops when printing the charts (or takes a really long time...not sure):


John

[JNuzzi]

It did eventually print after a few minutes.

[Yeray]

Hello,

I'm not sure to understand the problems you are experiencing with printing.
Could you please arrange a simple example project we can run as-is to reproduce the problem here?
Thanks in advance.

[JNuzzi]

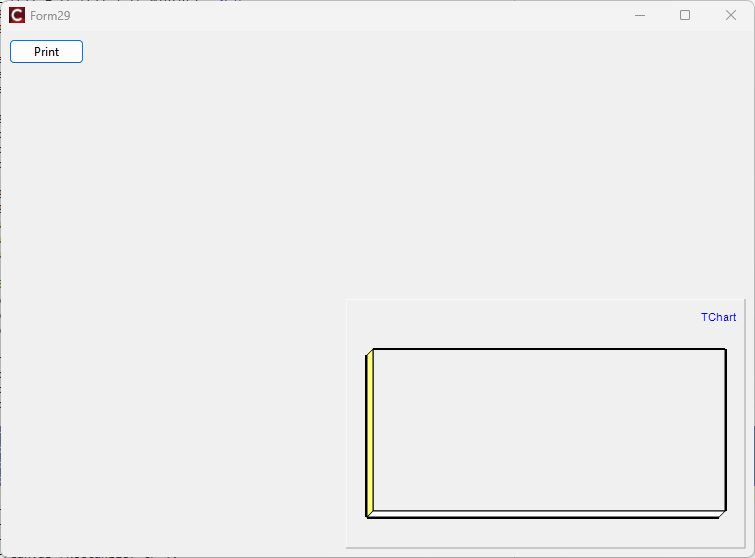

Sure. Here is a quick little program:


(btw, the title was set to left justified alignment)

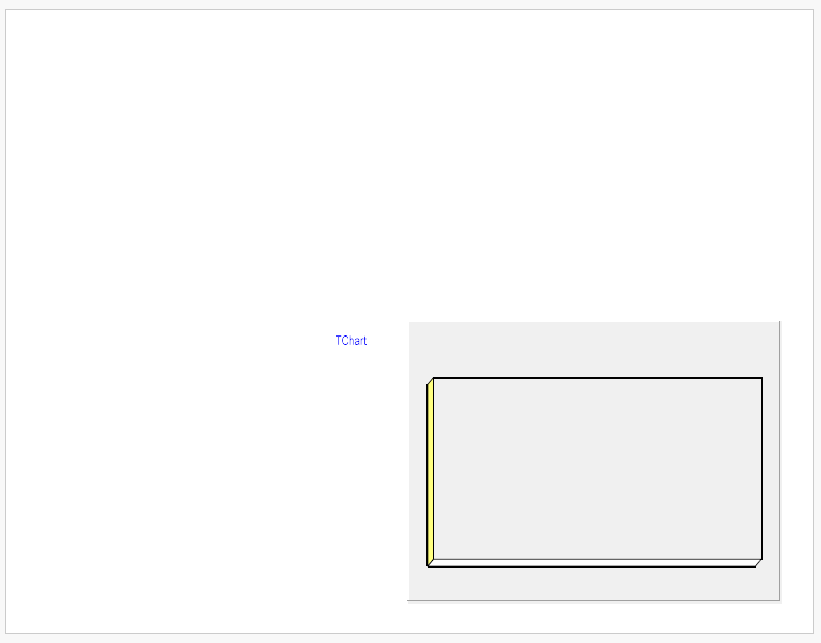

Here is a PDF print of that:


The Sample Project Zip is attached.

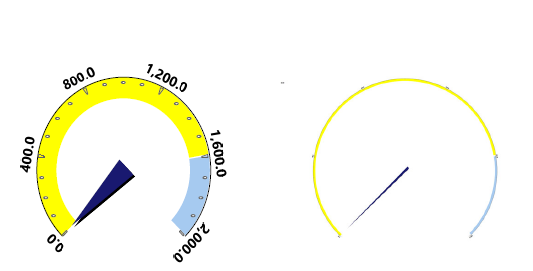

It's giving me all types of hell. I just compiled a Release version and lost the center alignment on the circular gauges. it works with Debug still, though.

John

[JNuzzi]

It seems like using anything but the default center alignment for the title does odd stuff.

[JNuzzi]

I have another printing issue that I would like to resolve if possible. The pie chart really stretches and the margins look way bigger.

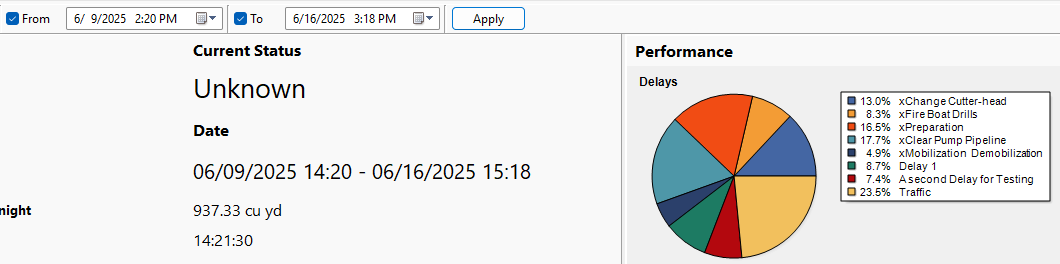

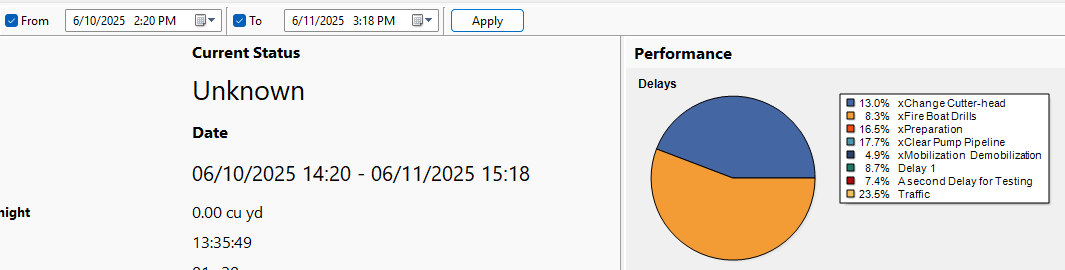

Here is the pie chart on the screen:

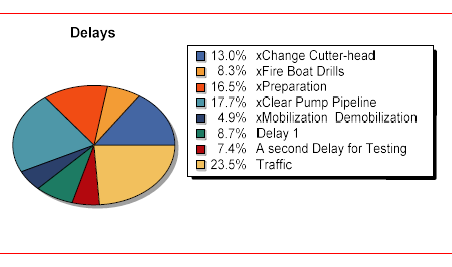

And here it is printed to PDF:


I am using the ChartPrintRect and the aspect ratios of screen vs print rect are the same, but it always squishes the image.

John

[JNuzzi]

?
